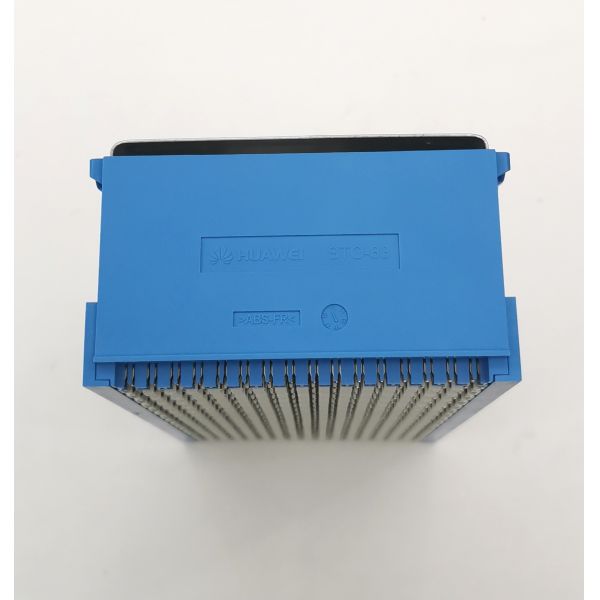

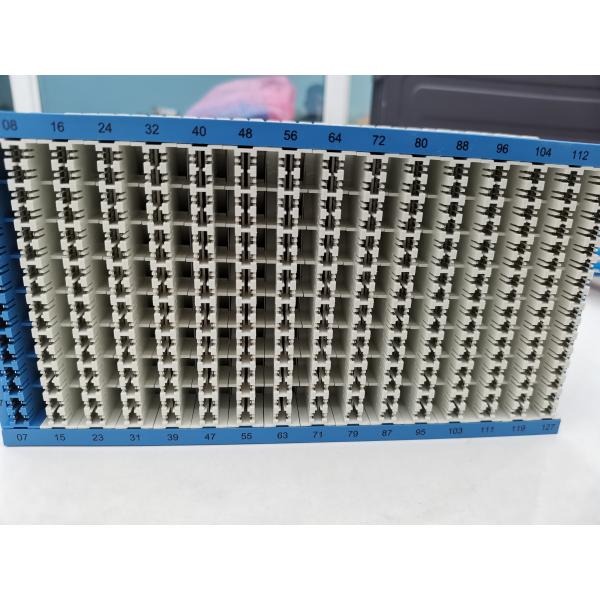

HuaWei EDFA Amplifier JPX202-STO-83B Wiring Row 128 Times MDF Module
HuaWei EDFA Amplifie JPX202-STO-83B (horizontal row) test wiring row 128 times MDF module JPX202 main distribution frame
JPX202 series main distribution frame
JPX202 series main distribution frame catalog 1 JPX202-F series double-sided frame 2 JPX202-F series single-sided frame 3 JPX202-GQ wall-mounted main distribution frame 4 JPX202-A3 wall-mounted main distribution cabinet 5 JPX202-B series Main distribution frame (cabinet) 6 JPX202-FA8-72 security terminal block 7 JPX202-STO-83 series test terminal block 8 JPX-LGJ-JY report device 9 JPX-ZGJ-JY general report device 10 JPX-GJ-GY Cabinet Bulletin 11 JPX202-FA9-81B Gas Discharge Tube Security Unit 12 JPX202-FA9-83A Semiconductor Discharge Tube Security Unit 13 JPX202 Accessories JPX202-F Series Double-sided Frame Editor.
Features of JPX202-STO-83B
1. 128 loops/modules, detachable mold strips.
2. Full front operation, convenient for maintenance.
3. The contact of the card contact piece is normally closed, and the circuit can be disconnected after inserting the open-circuit plug.
4. Each clip terminal can be multiplexed with two wires.
5. The wire pairs correspond to the wire slot one by one, which is convenient for threading, and the wires are neatly arranged without misalignment.
6. JPX202-STO-83A: Vertical installation, suitable for single-sided racks, double-sided cabinets, wall-mounted racks and wall-mounted cabinets.
7. JPX202-STO-83B: horizontal installation, suitable for double-sided racks.
Specification of JPX202-STO-83B
| Module capacity | 128 loops/module; |
| Connection function | used to connect jumpers and intra-office cables |
| Card connection function | each card connection terminal can multiplex two wires |
| Product features and applications | Module capacity: 128 loops/module; Connection function: used to connect jumpers and intra-office cables; Card connection function: each card connection terminal can multiplex two wires; The card contact is normally closed and can be opened by inserting the open-circuit plug; Applicable wire:The core wire diameter is 0.32mm~0.6mm The large outer diameter (including the insulating layer) does not exceed 1.4mm |
| Product features and applications | Module capacity: 100 loops/module; Connection function: used to connect external cables and jumpers; Card connection function: each card connection terminal can multiplex two wires; The card contact is normally open, and a path is formed after the security unit is inserted; The maintenance of each line will not affect other lines; Applicable wire:The core wire diameter is 0.32mm~0.6mm The outer diameter (including the insulating layer) does not exceed 1.4mm |
Our service
1. We can provide detailed documentation and remote help for equipment installation and configuration.
2. Warranty: 1 year. (After the quality guarantee period, the corresponding maintenance service fee will be charged.)
Our company promises to deliver goods within 7 or 15 days. Due to quality problems, the goods will be returned and exchanged in full. The returned goods must be kept in the original condition and the accessories are complete.
We can provide detailed documentation and remote help for equipment installation and configuration.
